Керамические стержни
Мы производим высокоточные керамические стержни, включая цирконий, глинозем, карбид кремния, нитрид кремния и другие материалы, которые могут использоваться в прецизионной технике, медицинском оборудовании, производстве полупроводников и многих других отраслях. Стержни доступны с разными спецификациями и уровнями допусков в зависимости от требований заказчика.
1. 20 лет опыта в производстве керамики
2. Поставка прямо с завода с гарантированным качеством
3. Доступно индивидуальное производство
4. Доступно в различных керамических материалах
5. Поддержка сборок и услуги по металлизации керамических металлов
PRODUCTS
Ceramic rods are widely used in industries such as precision machinery, semiconductors, medical devices, and chemical processing, thanks to their outstanding wear resistance, high hardness, corrosion resistance, and thermal stability.

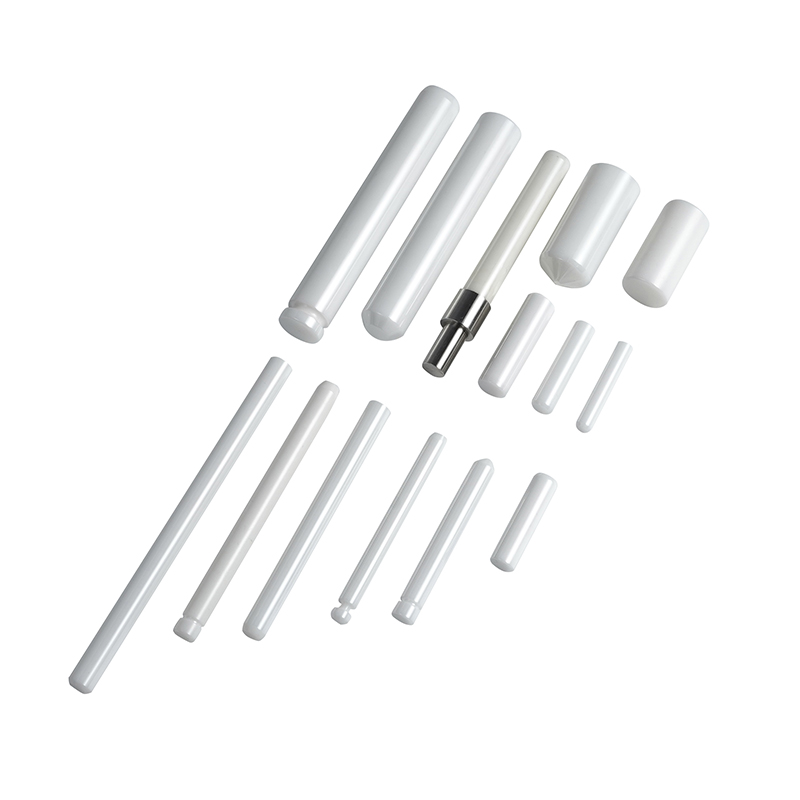

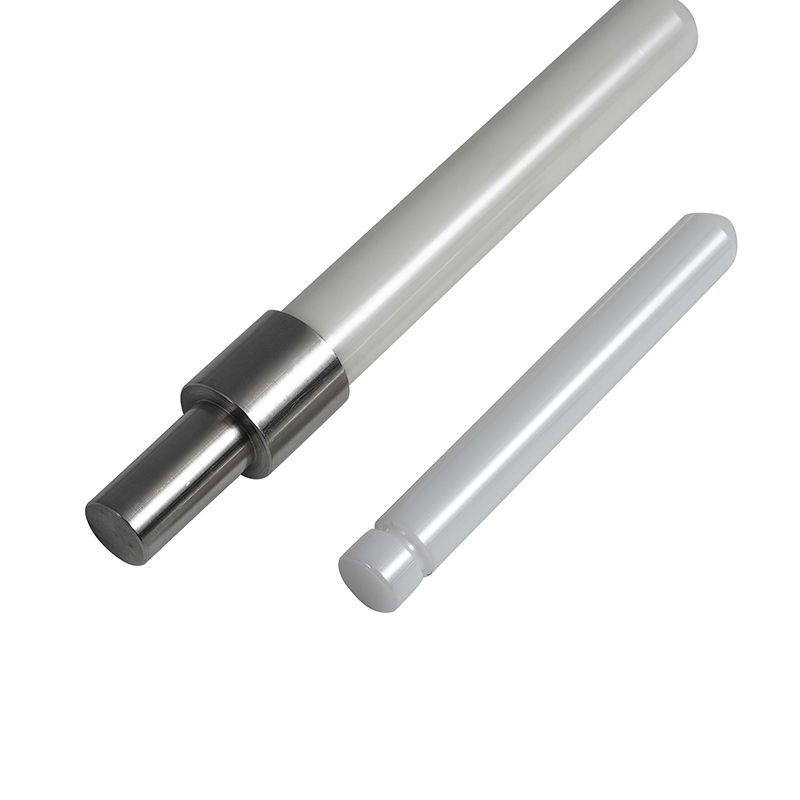

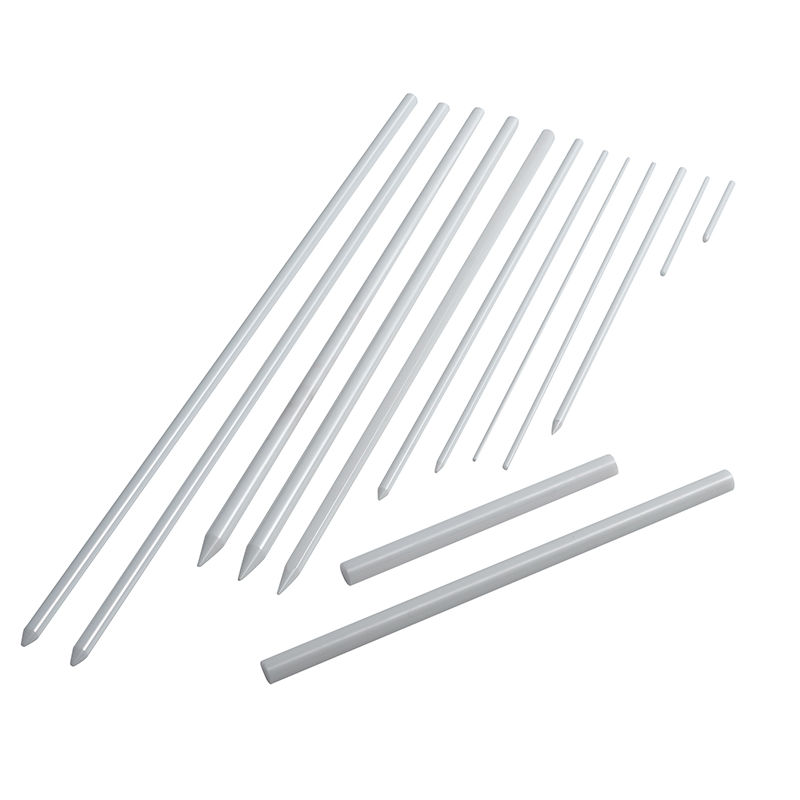

We offer a variety of material options including zirconia, alumina, and silicon carbide. A wide range of ceramic rod types can be customized, including solid rods, hollow rods, stepped rods, threaded rods, locating pins, plungers, and more — all designed to meet the challenges of demanding operating environments.
Our ceramic rods are manufactured with high dimensional accuracy, excellent mechanical strength, and smooth surface finishes. They are ideal for applications such as bearings, seals, probes, and insulation supports, helping customers improve equipment performance and extend service life.
Our Manufacturing Capabilities and Tolerance Range for Ceramic Rods:
(Unit: mm)
Performance\material |
Alumina | Zirconia | gemstone | Silicon Nitride |
Aluminum Nitride |
Silicon Carbide |
||||||||||||||||
| 96~99.95% | YSZ | ATZ | ZTA | Blue Zirconium | Black Zirconium | ruby | sapphire | |||||||||||||||
| Length Range | ≤1000 | ≤1000 | ≤1000 | ≤1000 | ≤1000 | ≤1000 | ≤100 | ≤300 | ≤200 | ≤200 | ≤200 | |||||||||||
| Outer Diameter Range | ≤150 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | |||||||||||
| Drilling | ≥φ0.4 | ≥φ0.4 | ≥φ0.4 | ≥φ0.4 | ≥φ0.4 | ≥φ0.4 | ≥φ0.4 | ≥φ0.4 | ≥φ0.4 | ≥φ0.4 | ≥φ0.4 | |||||||||||
| Thread Diameter | ≥M3 | ≥M2 | ≥M2 | ≥M3 | ≥M2 | ≥M2 | - | - | ≥M3 | ≥M3 | ≥M3 | |||||||||||
|
|
1–25mm: ±0.002mm 20–50mm: ±0.003mm 50–100mm: ±0.050mm 100-150mm: ±0.100mm |
|||||||||||||||||||||
| Length Precision | ±0.005mm | |||||||||||||||||||||
| Surface Roughness | Ra0.1 | Ra0.03 | Ra0.03 | Ra0.03 | Ra0.03 | Ra0.03 | Ra0.02 | Ra0.02 | Ra0.03 | Ra0.03 | Ra0.03 | |||||||||||
| Roundness | 0.002mm | |||||||||||||||||||||
| Concentricity | 0.002mm | |||||||||||||||||||||
| Straightness | 0.004mm | |||||||||||||||||||||
| Verticality | 0.005mm | |||||||||||||||||||||
| Parallelism | 0.003mm | |||||||||||||||||||||
| Flatness | 0.003mm | |||||||||||||||||||||
Note: Due to the wide range of indicators, there are correlations between different data. The above data is for reference only. You are welcome to provide specific drawings and requirements. We will evaluate the cost and delivery time for you as soon as possible!
If you have any needs for ceramic rods, please do not hesitate to contact us immediately !
